HP BN03XL Battery: Why There's No Bigger Version

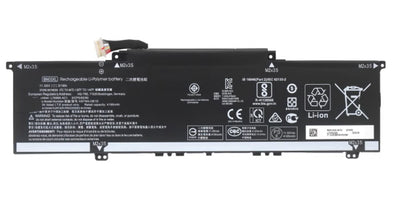

No. The genuine HP BN03XL ships at one spec — 3-cell, 11.55V, 51 WHr, 4.45 Ah — across every laptop it fits, and neither HP nor any parts reseller sells a higher-capacity version of this specific battery. HP’s own service documentation lists it as spare part L77034-005, described in the parts table as “Battery (3 cell, 51 WHr, 4.45 AHr, Li-ion; includes cable).” Nothing above 51 WHr is sold under that part number, by HP or by anyone referencing it. A genuinely bigger battery does carry the Envy x360 13 name elsewhere — it just isn’t this one, and it won’t go in a BN03XL bay.

Skip to the picks

Where the BN03XL actually goes

The BN03XL (also listed as HSTNN-DB9N, HSTNN-OB1O, L76965-271/2C1/AC1, L76985-271, TPN-C145/C147) is the battery HP built for the Envy x360 13-ay, 13-ba and 13-bd series, the Envy x360 15 2020-generation (15-ed, 15-ee, 15-es, 15-eu), and the Pavilion 14-dv, Pavilion 14-eh, Pavilion Plus 14, and Pavilion 15-eh lines. It is not the battery in an HP Spectre x360 13 — that chassis uses CP03XL, SH03XL or PK03XL depending on the model year, a common mix-up if you searched by “Spectre” and landed on BN03XL results. Check your exact model number on the bottom-panel sticker before assuming BN03XL is even the part you need.

The battery that actually is bigger

HP has shipped at least two other pack sizes under the same Envy x360 13 nameplate, at different points in the product line’s life. HP’s Maintenance and Service Guide for the newer Envy x360 13.3-inch 2-in-1 (model numbers 13-bf0xxx, 13th-generation Intel Core) lists a 4-cell, 66 WHr battery, spare part M90073-005 — sold under the part number WF04XL. That’s roughly 29% more capacity than the BN03XL’s 51 WHr. An earlier Ryzen-based generation (13-ag, 13-ah, 13-aq, 13-ar, 2018–2020) used a 4-cell, roughly 53 WHr pack under part number KC04XL (L08496-855) — parts resellers list its spec consistently, though this generation predates the two service guides checked directly for this article.

None of that helps a BN03XL-equipped laptop, because none of these packs share its connector, cell count, or voltage rail.

Why the bay itself sets the ceiling

A laptop battery pack isn’t just cells — it’s cells plus a fixed physical cavity, a connector pinout, and an embedded controller that expects a specific voltage and cell configuration to report state-of-charge correctly. HP’s own service guide for the 66 WHr generation states it plainly in the removal procedure: “To reduce potential safety issues, use only the user-replaceable battery provided with the computer, a replacement battery provided by HP, or a compatible battery purchased from HP.” That’s not marketing language — a 4-cell, 7.7V pack and a 3-cell, 11.55V pack manage charge current and cell balancing differently, and swapping one into a bay wired for the other is an electrical mismatch, not just a bigger fit.

This is also why every reseller listing referencing the BN03XL part number — regardless of brand — tops out at 51 WHr. Some list it as 4,195 mAh, others as 4,420 mAh, and HP’s own guide states 4.45 Ah; those are rounding differences from slightly different assumed nominal voltages, not real capacity differences. One listing (from battdepot) sells a “BN03XL” replacement rated at just 46 WHr, 11.1V — a real part sold under the same reference number at lower capacity than genuine, which is the opposite of what a searcher wants and a good reason to check Wh on any listing rather than trust the model name alone.

Confirm which battery your laptop actually needs

Before shopping for “higher capacity,” pull the exact model number off the bottom-panel label (format like 13-ay0013dx or 13-bf0023dx) rather than working from the family name “Envy x360 13.” If your laptop is a 13-bf model, it never had a BN03XL in it — it shipped with the 66 WHr WF04XL, which is the genuinely bigger battery you may have been trying to describe. If it’s a 13-ay/ba/bd or one of the 15-ed/ee/es/eu or Pavilion 14/15 models, 51 WHr is the ceiling HP engineered for that chassis, full stop.

If you’re already tracking down other genuine HP parts for a repair on the same machine, the sourcing questions are similar for other components — see Getting Genuine PTM7950 Before an HP Repaste Visit for how HP gatekeeps another commonly-faked part, and HP 14-fa0023dx Keyboard: The Right Replacement if a keyboard is next on the list.

Adding runtime without opening the case

If what you actually want is more hours away from a charger rather than a specific part number, a USB-C Power Delivery power bank sidesteps the internal-battery ceiling entirely, since every laptop that takes a BN03XL charges over USB-C. The Anker 737 Power Bank (PowerCore 24K) holds 24,000 mAh (86.4 Wh) and outputs up to 140W over USB-C — enough to fast-charge a BN03XL-equipped Envy or Pavilion from empty more than once. It weighs about 630g, so it’s extra bulk in the bag rather than a capacity upgrade, and it tops up the internal battery instead of replacing it — but it’s the only legitimate way to add meaningfully more runtime to one of these laptops without an electrical mismatch.

If a genuine replacement battery isn’t recognized after installation, that’s typically a firmware or embedded-controller pairing issue rather than anything about capacity — a full power cycle (disconnect AC, hold the power button 15 seconds, then reconnect) or a pending BIOS update is the usual fix, and it’s worth ruling that out before assuming the part is faulty.
