CP1350PFCLCD Battery: Check This Before Ordering

The CyberPower CP1350PFCLCD uses replacement cartridge RB1270X2C for serial numbers beginning CXY or CX5, and RB1270X2A for CQB or CR8. Check the serial-number label before ordering: CyberPower lists both cartridges for this model, so the name CP1350PFCLCD alone does not identify the right replacement. CyberPower’s current compatibility specifications

Skip to the picks

Choose the battery by serial number

Use this table to separate the two approved replacements from a similarly named cartridge that can appear in battery searches.

Skip the CyberPower RB1280X2A for a CP1350PFCLCD: CyberPower lists it for models including the CP1350AVRLCD, but does not list the CP1350PFCLCD. Those similar UPS names are not interchangeable. CyberPower RB1280X2A compatibility

This particular mix-up has a documented history. TinkerTry reported that an old shopping link intended for the RB1270X2A began redirecting readers to the RB1280X2A. That does not establish a current redirect problem, but it explains why checking the actual cartridge name matters even when you follow a seemingly relevant guide. TinkerTry’s replacement-link correction

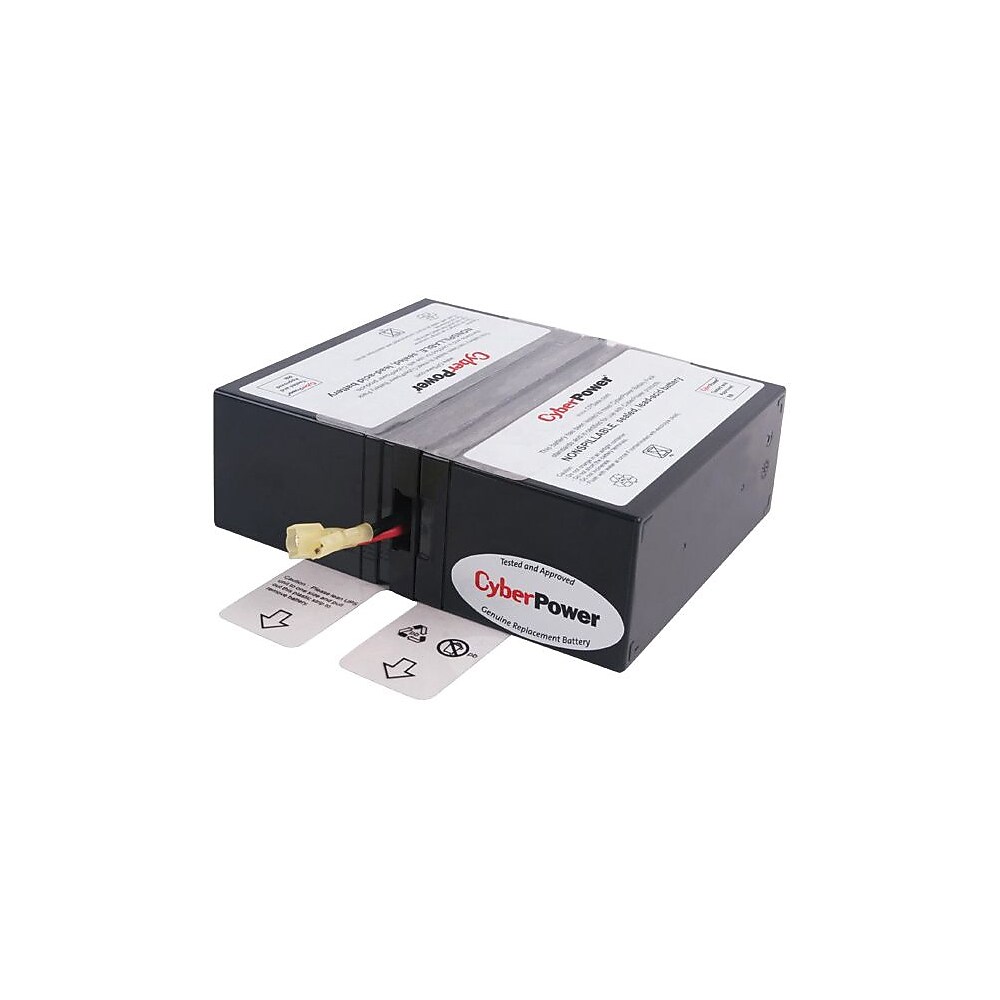

Both approved cartridges contain two 12V, 7Ah sealed lead-acid batteries. One replacement cartridge supplies the pair; you do not need to order two complete cartridges. The RB1270X2A and RB1270X2C are both appropriate purchases for their specified revisions. Neither is a universal upgrade over the other. RB1270X2A specifications, RB1270X2C specifications

There is a useful documentation wrinkle: the RB1270X2C cartridge page names CXY, while the current CP1350PFCLCD UPS page explicitly includes CXY or CX5. An older compatibility description can therefore look incomplete even when the newer UPS page identifies the cartridge. For a prefix outside the four listed above, use CyberPower’s battery replacement tool, which accepts the first three serial-number characters. If the result is missing or contradicts the installed pack, contact CyberPower with the full serial number before buying.

For loose aftermarket batteries, “12V 7Ah” is not enough information to establish fit. You also need the correct physical dimensions, terminal arrangement, connectors, and assembly for the particular revision. A listing that mentions CP1350PFCLCD without distinguishing revisions leaves the key question unanswered. Ask the supplier to confirm the serial prefix and whether the package is a complete cartridge or only bare batteries requiring existing wiring.

The official cartridges avoid that uncertainty through their explicit compatibility assignments and preassembled format. Their limitation is equally clear: buying an official CyberPower battery does not make the wrong suffix compatible.

Replace both batteries with the UPS shut down

Plan a shutdown for the replacement. CyberPower’s current CP1350PFCLCD specification marks the battery as user replaceable but not hot swappable. Move any equipment that must remain powered to another suitable supply before starting. CP1350PFCLCD battery specifications

Use the instructions supplied with the matching cartridge and your UPS revision. CyberPower’s published replacement procedure follows this sequence:

1. Shut down and disconnect attached equipment, then switch off and unplug the UPS.
2. Remove metal jewelry and use tools with insulated handles.
3. Lay the UPS on its side, remove the bottom retaining screws, and slide off the front panel.
4. Remove the battery restraint where fitted, withdraw the batteries, and disconnect their wires.
5. Install both new batteries, matching the red positive and black negative connections as illustrated.
6. Refit the restraint, panel, and screws, then recharge for 8–16 hours.

Replace both batteries together. Send the old pair to a lead-acid battery recycler. The battery compartment remains an electrical hazard even after the mains cord is unplugged. CyberPower’s battery replacement instructions

If the pack is swollen, stuck, leaking, or connected through damaged wiring, stop and contact support rather than forcing it out. The scope of this procedure is the accessible battery compartment; it does not require dismantling the UPS electronics.

Before reconnecting important equipment, inspect the completed installation and allow the specified charging period. Then use the battery-test procedure documented for your revision. Save work first: a failed battery test can interrupt the connected load. Treat successful operation under the intended load as the useful check, rather than assuming a charge indicator proves the replacement is ready.

Short runtime does not always mean another battery is needed

For the 880W version documented in CyberPower’s current datasheet, the manufacturer specifies eight minutes at half load and two minutes at full load. Half load is therefore 440W. These figures describe brief backup for shutdown, and a replacement cartridge does not turn the UPS into a source of hours of power for a heavily loaded desktop. CyberPower CP1350PFCLCD datasheet

No independent laboratory runtime measurements were located for either replacement cartridge during research for this article. The runtime figures above are CyberPower’s specifications, not independently verified replacement-battery results. Check the wattage rating on your own unit before applying them to an older revision.

CyberPower gives UPS batteries a typical service life of three to five years, with charging cycles and environmental conditions affecting the result. That is a planning range, not a promise that every battery will last five years or must fail on its third birthday. A clear decline from previous runtime under the same load makes battery aging more plausible. CyberPower’s battery-life guidance

Check the displayed fault before ordering another cartridge. CyberPower’s manual says the replacement-battery indicator can mean worn batteries or a poor connection. It identifies E01 and E02 as charging faults requiring support, while E22 indicates an overload that calls for reducing the connected load. A cartridge purchase is not the documented remedy for every warning. CyberPower’s fault definitions

If a correctly matched, properly connected replacement still fails after charging and testing within the UPS rating, contact CyberPower with the serial number, cartridge number, displayed fault, and connected load. At that point, the unresolved issue may require service or an RMA; buying another pair of batteries is a guess.
