Sanus VLT7 on an 85-Inch Bravia 9 II: Setting the Height

The Sanus VLT7 (VLT7-B2) fits the 85-inch Sony Bravia 9 II — model K-85XR90M2 — without an adapter plate. The TV’s 400 x 400mm VESA pattern sits inside the mount’s supported range of 150x100mm up to 600x400mm, and the panel’s weight without its table-top stand, 48.2 kg (106.2 lb) per Sony’s own Quick Setup Guide, leaves close to 44 lb of headroom under the VLT7’s 150 lb rating. Compatibility isn’t the hard part here. The hard part is getting the wall plate at the right height before the TV shows up, because Sony does not print how far the lower VESA holes sit above the bottom bezel for this specific model. Here’s what actually solves that, and the numbers to plan the wall prep around in the meantime.

Skip to the picks

Confirming the fit with the numbers both companies publish

Sony’s Quick Setup Guide for the K-85XR90M2 (shared with the 85XR90SM2 and other 2026 Bravia panels) lists the TV without its table-top stand at 1,892 x 1,077 x 46mm — 74 1/2 x 42 1/2 x 1 13/16 inches — at 48.2 kg (106.2 lb). The same document lists the VESA hole pitch for this model as 400 x 400mm. Mount-It’s compatibility database for the XR90M2 85-inch confirms the same VESA figure and the same 106.2 lb bare-panel weight independently.

On the mount side, Sanus specifies the VLT7 as fitting displays 42 to 90 inches at up to 150 lb, across a VESA range that includes 400x400mm alongside fifteen other hole patterns from 150x100mm up to 600x400mm. Tilt runs from -12° to +7°, swivel is ±15°, and the mount holds the TV as close as 2.1 inches off the wall or extends out to 6.8 inches for cable access. Both companies’ own published specs clear this pairing with room on both the weight and the VESA axis — the 400x400 pattern isn’t at either edge of the VLT7’s range, and 106.2 lb isn’t close to the 150 lb ceiling.

Why the exact hole offset isn’t in Sony’s spec sheet

What Sony’s documentation does not include, in the Quick Setup Guide or on its published spec pages, is the distance from the bottom of the panel to the lower pair of VESA holes. That number exists — Sony prints it for other models on a case-by-case basis — but it isn’t part of the standard spec sheet, and it isn’t a fixed industry constant. VESA only standardizes the hole spacing (400 x 400mm here), not where that pattern sits on the panel relative to the bezel edges. Manufacturers place it wherever the internal chassis bracing and electronics layout put the structural mounting points, and that varies by chassis generation even within the same screen size.

For reference, Sony has published this figure for a different but comparably sized 85-inch panel: on the 2022 Bravia XR X90K, a Sony support representative confirmed on a Best Buy product Q&A that the distance from the bottom mounting hole to the bottom of the TV, without the stand, is approximately 5.50 inches (140.8mm). That’s a different model line from the Bravia 9 II’s mini-LED chassis, so treat it as a planning estimate rather than a confirmed spec for the K-85XR90M2 — but it illustrates the scale of the problem. If the Bravia 9 II follows similar proportions, the lower holes sit roughly 5 to 6 inches above the bottom bezel, which puts the upper holes around 21 to 22 inches up (add the 15.75-inch VESA spacing), leaving close to 20 inches of bezel above the top holes on a panel that’s 42 1/2 inches tall overall. That’s a heavily bottom-weighted hole placement, not a centered one — assuming the VESA pattern sits at the panel’s vertical midpoint will put the screen noticeably higher on the wall than planned.

The number that actually matters: post-install adjustment

This is where the VLT7 changes the calculation. Unlike a fixed low-profile mount, where the plate height you choose before delivery is the final screen height, Sanus documents the VLT7’s plate as allowing height and level fine-tuning after the TV is already hanging on it — described in Sanus’s own product materials as adjustments available “both during and after installation.” That’s the practical answer to the positioning question: the wall plate doesn’t need to be positioned to the exact millimeter before the 85-inch panel arrives, because there’s a slotted margin built into the plate to correct the final height once the L-brackets are actually on the TV and hung.

That doesn’t mean the pre-delivery prep is guesswork. It means the target for stud marking is a planning estimate, with the mount’s post-install slot absorbing the difference between that estimate and the real hole position once it’s measured.

Setting stud marks before the TV is in the room

Three numbers do the pre-delivery math:

• Panel height without stand: 42 1/2 inches (1,077mm)
• VESA vertical spacing: 15.75 inches (400mm)
• Planning estimate for the bottom-hole offset: roughly 5.5 inches, based on the comparable X90K figure above

Decide on a target screen-center height first — the usual guidance is eye level when seated, which for most couches lands the screen center somewhere between 42 and 48 inches off the floor, though that depends on the seating distance and couch height in the specific room. From that target center, if the VESA pattern happened to be centered on the panel, its vertical midpoint would sit right at screen center — no offset to plan for. But given the bottom-weighted placement described above, the actual VESA midpoint sits well below that: roughly 8 inches below screen center, consistent with the bottom-hole and spacing estimates used above. Mark the wall plate’s rail at that estimated VESA-center height, allowing for the VLT7’s tilt range (up to 7° upward) if the mount is going above typical eye level, which is common for 85-inch panels over a fireplace.

The Sony documentation is explicit that installing the wall bracket takes “sufficient expertise” and recommends subcontracting to a dealer or licensed installer if that’s not available in-house — worth factoring in given the panel weighs over 106 lb and needs, per Sony’s own instructions, at least two people (three or more for TVs 85 inches and up) to carry safely.

For readers deciding on the actual screen height and size relative to a specific seating distance before any of this mounting math starts, Sony Bravia 5 85: When 100 Inches Wins covers how viewing distance should drive that decision for Sony’s large-panel lineup.

What 106 lb on studs actually requires

Sony’s Quick Setup Guide specifies M6 machine screws for attaching a wall-mount bracket, torqued to 1.5 N·m (15 kgf·cm), screwed into the TV’s rear cover rather than the table-top stand’s screw holes — the two use different threaded points, and the guide is explicit about removing the upper two stand screws before anchoring the TV to a wall bracket. On the wall side, the VLT7’s plate is a horizontal rail rather than a single bracket point, which is what lets it span standard 16-inch on-center stud spacing; a 106 lb panel on a full-motion arm concentrates load and leverage at the extended position, so the plate needs to land on studs, not drywall anchors alone, regardless of which mount is used.

Two mounts to weigh against the VLT7 for this exact TV

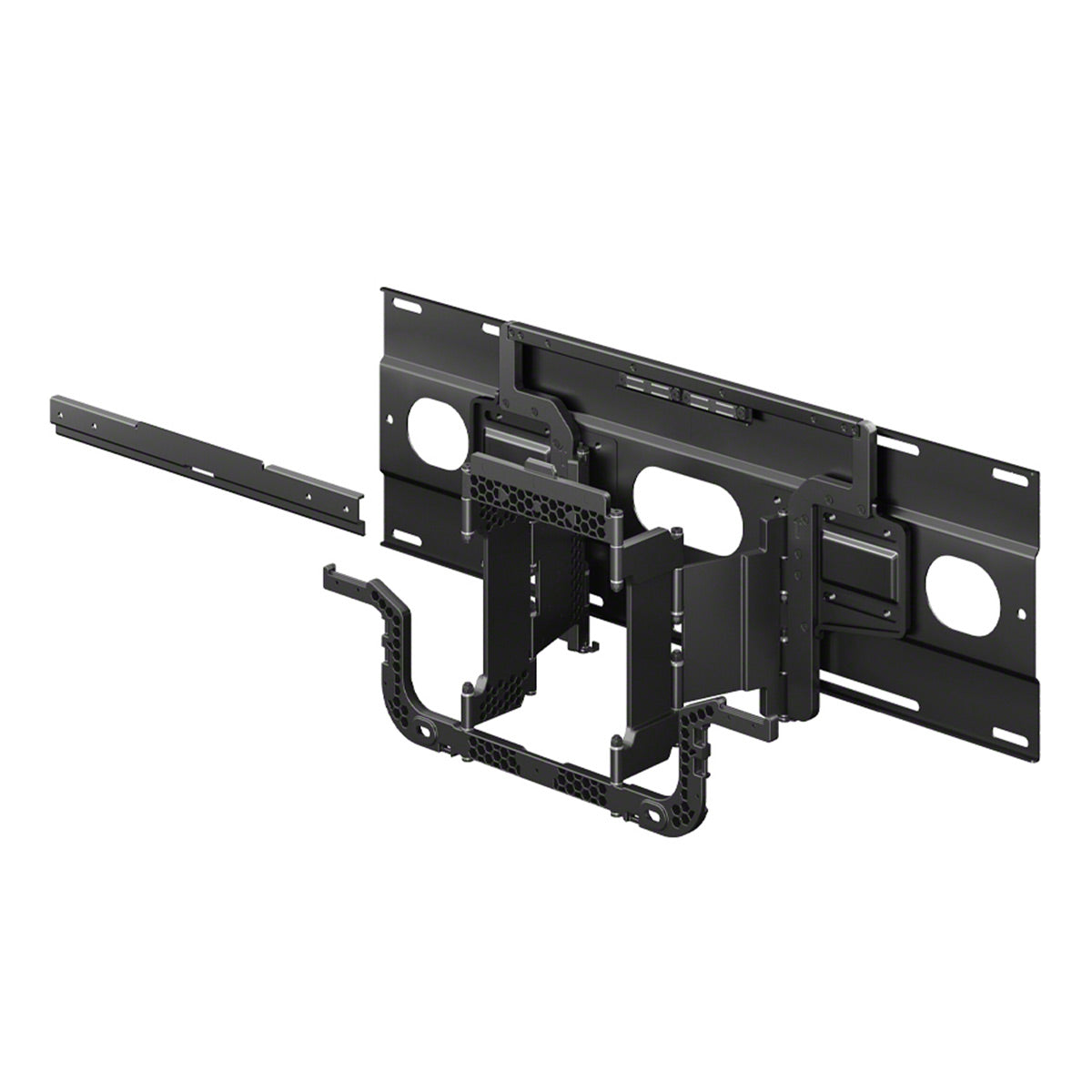

Sony’s own SU-WL905 is the obvious alternative, and it’s the one to skip here. It’s the brand-matched bracket Sony markets for 2023–2024 Bravia TVs up to 85 inches, with the same 400x400mm VESA support, rated to 110 lb. Against the Bravia 9 II’s 106.2 lb bare weight, that’s roughly 4 lb of margin — about 3.5%, versus the VLT7’s nearly 44 lb of headroom. More relevant to the positioning question this whole piece is about: the SU-WL905 is built to sit the TV about 11mm off the wall, essentially flush, which is a different design goal than an articulating arm and leaves little to no room to correct a wall plate that was installed a few inches off target. If the plan is to get the mount up before the TV physically arrives — the exact situation this question describes — a flush bracket with minimal adjustment margin is the wrong tool, independent of the fact that it’s Sony-branded for this TV.

The Sanus VLF728 is worth considering only if 6.8 inches of pull-out isn’t enough. It’s the full-motion sibling in the same Sanus lineup, extending to 28 inches from the wall and swiveling a full 57° in each direction, against the VLT7’s 15°. That’s useful for corner installations or reaching a TV out and around a fireplace mantel or a deep wall projection. Its weight rating, 125 lb, still comfortably clears the Bravia 9 II’s 106.2 lb, and its tilt range (-15° to +5°) is slightly different from the VLT7’s (-12° to +7°) — more downward tilt available, less upward. For a straightforward wall installation without an obstruction to reach around, the extra 21+ inches of extension the VLF728 offers over the VLT7 isn’t needed, and the VLT7’s tighter 15° swivel is plenty for viewing-angle correction on a flat wall.

The practical sequence

Mark the studs and mount the VLT7’s wall plate using the estimated VESA-center height calculated from the TV’s 42 1/2-inch panel height and a target screen-center height for the room — that part doesn’t need to wait for delivery. When the Bravia 9 II arrives, attach the L-brackets to its 400x400mm VESA holes using M6 screws torqued to 1.5 N·m as Sony’s guide specifies, hang the TV on the plate with at least two people supporting the panel, and use the VLT7’s post-install height and level adjustment to correct for whatever gap exists between the pre-delivery estimate and the TV’s actual hole position. That sequence is the reason the VLT7 fits this specific situation better than either alternative in the table: it’s the one mount in the comparison that treats the wall-plate height as a target to refine rather than a number that has to be exactly right before the box is opened.
