JBL Flip 5 CS Fabric Cover: The Exact Part

For a JBL Flip 5 CS, buy the CS-specific fabric grille assembly—black is part 1003047565B0001—and treat TL or GG covers as unverified. JBL assigns separate grille assemblies to the CS, TL, and GG revisions, so a listing that says only “fits JBL Flip 5” does not establish compatibility.

Skip to the picks

The exact CS replacement to search for

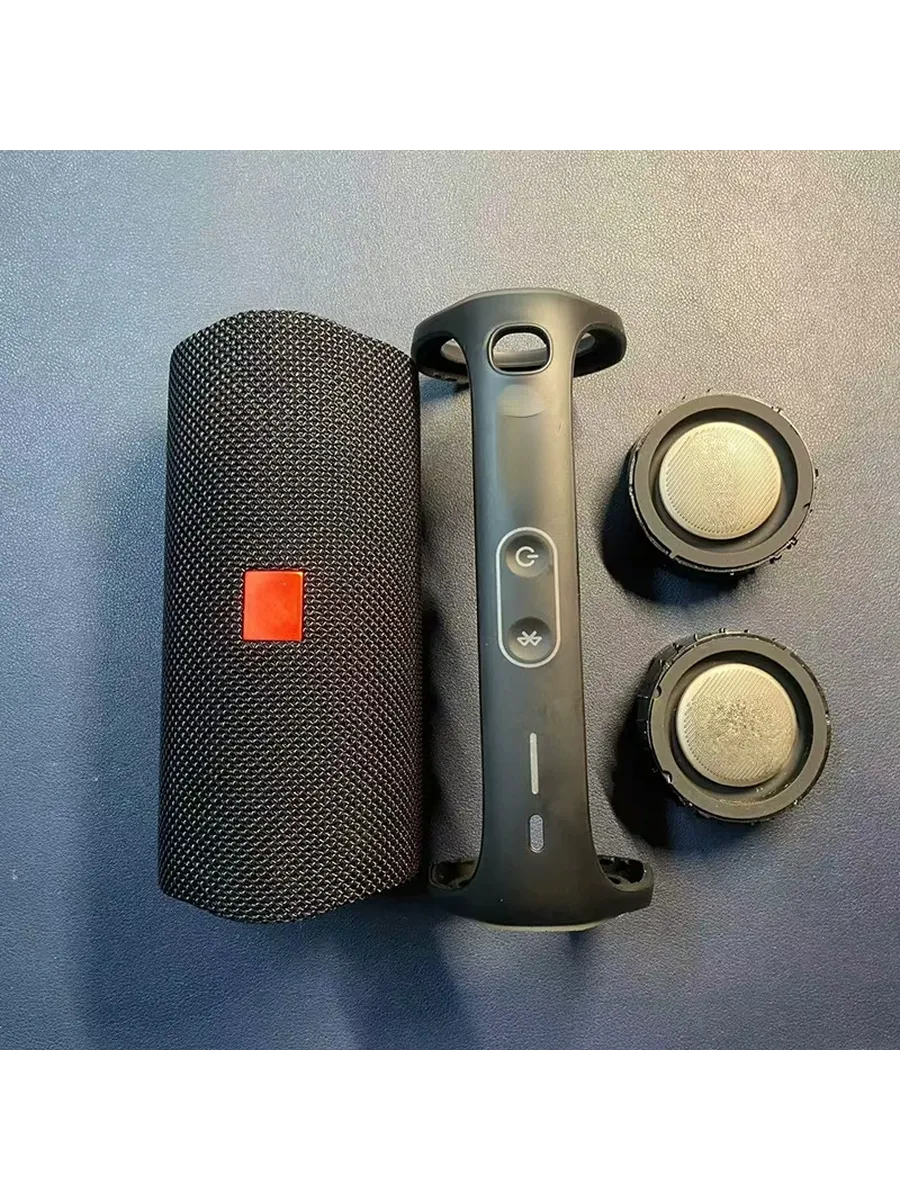

JBL calls the missing cover a fabric grille assembly, not simply fabric or speaker cloth. In the Flip 5 CS service manual, the complete assembly occupies positions 8, 9, 10, and 11 in the exploded view. That matters because the useful replacement includes the shaped carrier and attachment hardware rather than only woven material.

For a black CS speaker, search for both the description and the exact number:

JBL Flip 5 CS Fabric Grille Assembly Black — 1003047565B0001

JBL’s US parts page identifies that same number as the black Flip 5 CS grille. An Amazon or marketplace listing should reproduce the number or show credible evidence that the part came from a CS donor. “Flip 5 cover,” “Flip 5 mesh,” and “universal Flip 5 shell” are not precise enough.

The CS service manual lists these color-specific numbers:

• Black: 1003047565B0001
• Red: 1003047565B0002
• Blue: 1003047565B0003
• Gray: 1003047565B0004
• Green: 1003047565B0005
• White: 1003047565B0006
• Sand: 1003047565B0007
• Teal: 1003047565B0008
• Pink: 1003047565B0009
• Yellow: 1003047565B0010

Match the number to the desired color, but keep CS as the non-negotiable part of the description.

CS, TL, and GG covers are not the same documented part

Different numbers alone do not prove that cross-revision installation is physically impossible. They do prove that JBL did not document these three black grilles as one interchangeable service part. No manufacturer cross-reference or independent dimensional comparison was found that confirms a TL or GG grille on a CS chassis.

Skip the Flip 5 TL fabric grille assembly 08-0FLIP5-FA1S for a CS speaker unless the seller supplies direct cross-fit evidence. Skip the Flip 5 GG grille assembly PAS01381001 for the same reason. Both get revision matching wrong for CS owners: exterior resemblance does not verify the locations and shapes of the retaining clips, button opening, logo carrier, and edges that meet the speaker body.

This is not a claim that every TL or GG shell must fail to slide over a CS unit. It is a buying decision based on what can be verified: the CS part is documented for CS, while the other two are not.

Confirm that the speaker really is a CS

Check the first two characters of the serial number rather than identifying the revision from its color or passive-radiator appearance. The CS service manual is explicitly for Flip 5 units with serial numbers beginning CS. iFixit likewise advises using the serial number’s first two characters to identify the Flip 5 version and says the label may be on the packaging or inside the leash-bar cavity.

That same iFixit guide uses a TT-version speaker and warns that Flip 5 variants differ in construction and internal connectors. Its photographs are useful for understanding the clip-based cover, but they are not evidence that a TT, TL, or GG replacement grille fits CS.

If the serial label is missing or unreadable, look for another revision marking or a molded number on the exposed chassis. Do not infer CS from the product name alone. When the revision cannot be established, send JBL Support the full remaining serial information and photographs before ordering a nonreturnable part.

What a trustworthy listing must show

The strongest listing identifies the cover by 1003047565B0001 or another CS color number. If it does not, ask for:

1. A photograph of the donor speaker’s serial label beginning with CS.
2. Clear inside views showing the complete grille frame and every plastic clip.
3. A photograph of any molded or printed number inside the assembly.
4. Confirmation that the item is the rigid grille assembly, not loose acoustic cloth.
5. A return policy covering incompatible attachment points.

A seller’s statement that the product fits “Flip 5, all versions” is a claim that needs evidence. Useful evidence would be identical molded numbers, side-by-side internal photographs, measured clip locations, or an explicit JBL parts cross-reference. A shared external length or a photograph taken only from the fabric side is not enough.

Generic acoustic fabric is also the wrong purchase when the entire cover is absent. It provides no molded carrier or clips. Likewise, an external silicone sleeve or zippered travel case may protect an assembled speaker, but neither replaces the structural fabric grille.

Installing the correct assembly

Power the speaker off and disconnect its USB-C cable before working around the chassis. iFixit’s repair guide says the Flip 5 fabric cover is retained by plastic clips: a spudger is inserted under a corner, then worked along the edge to release the clips progressively.

For installation, first inspect the replacement for cracked, missing, or bent clips. Align the grille with the buttons, logo position, and both end profiles before pressing anything into place. Engage the clips gradually along one edge and then the other. If one area needs substantially more force, stop and check alignment and part identity; forcing an incorrect revision can damage the replacement and the speaker body.

Before fastening the final clips, briefly power on the speaker and verify that its buttons remain free and that no new vibration or rubbing noise appears. iFixit similarly recommends testing during reassembly before the cover is fully reinstalled. This functional check does not prove restored water resistance, so avoid treating a dismantled or repaired unit as factory sealed.

Where the evidence ends

No independent laboratory measurement of CS-versus-TL-versus-GG grille geometry was found for this article. Independent repair material demonstrates that the cover is clip-mounted, while JBL’s service documentation supplies the revision-specific part numbers. Neither source establishes cross-revision interchangeability.

That leaves a clear buying rule: choose a CS-labeled fabric grille assembly, preferably the exact color-specific JBL number. For black, the answer is 1003047565B0001. Do not buy a TL or GG grille for a CS speaker merely because it looks identical in an exterior photograph; without a documented cross-reference or matching internal measurements, it remains an unverified substitute.
