Foldable Sim Racing Cockpit for CRP2

You need a foldable setup that lets the CRP2s sit flatter and stay bolted down; a “more racing” seating position by itself will not fix the ankle pain. If the rig tilts the pedal tray up toward you, it can make the exact problem worse.

Skip to the picks

The CRP2s are not weak entry pedals that can just sit loose on carpet. They are load-cell pedals with a strong brake, and Moza lists pedal-face adjustment, pedal-face height adjustment, footrest adjustment, and an optional inverted kit. That gives you tuning range, but it does not solve the basic problem of the whole pedal box moving or sitting at a bad angle. Your wood block failed because it was only a spacer. Under braking, it had no real relationship with the pedals, the floor, or your chair.

Fix the angle before buying a cockpit

The pain pattern matters. If your ankles hurt because your toes are being held too far upward at rest, you do not want the classic cheap foldable “pedal tray angled toward the driver” setup. That position can be fine for Logitech-style pedals with a soft brake and a normal desk chair, but CRP2s are a different situation. You are pushing a load cell, so any awkward ankle angle gets punished every braking zone.

Set the pedals so your ankle is close to neutral when your foot is resting on the throttle and brake. In practice, that usually means three things:

1. Bring the pedals farther away than you think, so you press more with your leg and less by cocking your ankle.
2. Keep the pedal base plate flat or only slightly raised at the toe end.
3. Use the CRP2 pedal-face adjustment and footrest adjustment after the rig geometry is close, not before.

Do not chase a true formula position unless your seat is also reclined and your hips are low. Raised, steep pedals with an upright chair can feel like stretching your ankles for an hour. Formula rigs work when the whole body angle matches. A half-formula setup is often worse than a simple GT position.

The foldable stand answer

For your constraints, the best first answer is a wheel stand, not a full folding seat, if you already have a stable chair you can use. The Next Level Racing Wheel Stand 2.0 is the cleanest match because the pedal plate is rigid, adjustable, and the stand includes a chair cradle. That last part matters with CRP2s: if your chair rolls or slides backward, you will subconsciously tense your ankles and calves to hold position. Then the pedals get blamed for pain that is partly the chair moving.

The bad part is weight and storage. It folds, but it is not a featherweight stand you casually flick into a cupboard. Once a wheelbase, CRP2s, and cables are attached, it becomes a solid object you move deliberately. It also does not promise a magic negative pedal angle. Reviews and official specs describe pedal angle adjustment, not a guaranteed toe-down position. So you should buy it because it gives you a rigid hard-mounting platform and enough adjustment to get close, not because it automatically solves every ankle geometry issue.

If you go this route, mount the CRP2s with bolts, not straps. Start with the stand’s pedal deck as flat as possible. Then set the CRP2 pedal faces back within their own adjustment range. If you still need more relief, use a fixed bolted spacer under the heel side or pedal side, not a loose wood block. A proper solution is a drilled wedge, rubber feet, or aluminum spacers captured by the same bolts that hold the pedal base. Nothing should be able to walk away under braking.

When you actually need the seat attached

If your current chair is the problem, or you race in front of a TV where the chair position changes every session, then a foldable cockpit makes sense. The Playseat Challenge X is worth looking at first in that case. It is light, folds properly, has a real seat, and Playseat says the wheel and pedal mounts are adjustable for distance, angle, and height. It also has broad compatibility claims that include Moza through Playseat’s FAQ.

Its weakness is rigidity. With CRP2s, the pedal side matters more than with basic pedals, and a folding chair-style frame will never feel like an aluminum profile rig. Reviewers generally find the Challenge X usable with entry direct-drive and load-cell gear, but the wheel deck can flex because the frame has to fold. If you are running a Moza R5 or R9 and you care more about storage than absolute stiffness, it is a fair compromise. If you are already planning a stronger base later, it is a temporary home rather than an endgame cockpit.

Don’t pick it just because it looks more like a cockpit. Pick it only if locking your seat position is part of the medical fix. If your chair is already solid, the Wheel Stand 2.0 gives you a better pedal mounting base for the same problem.

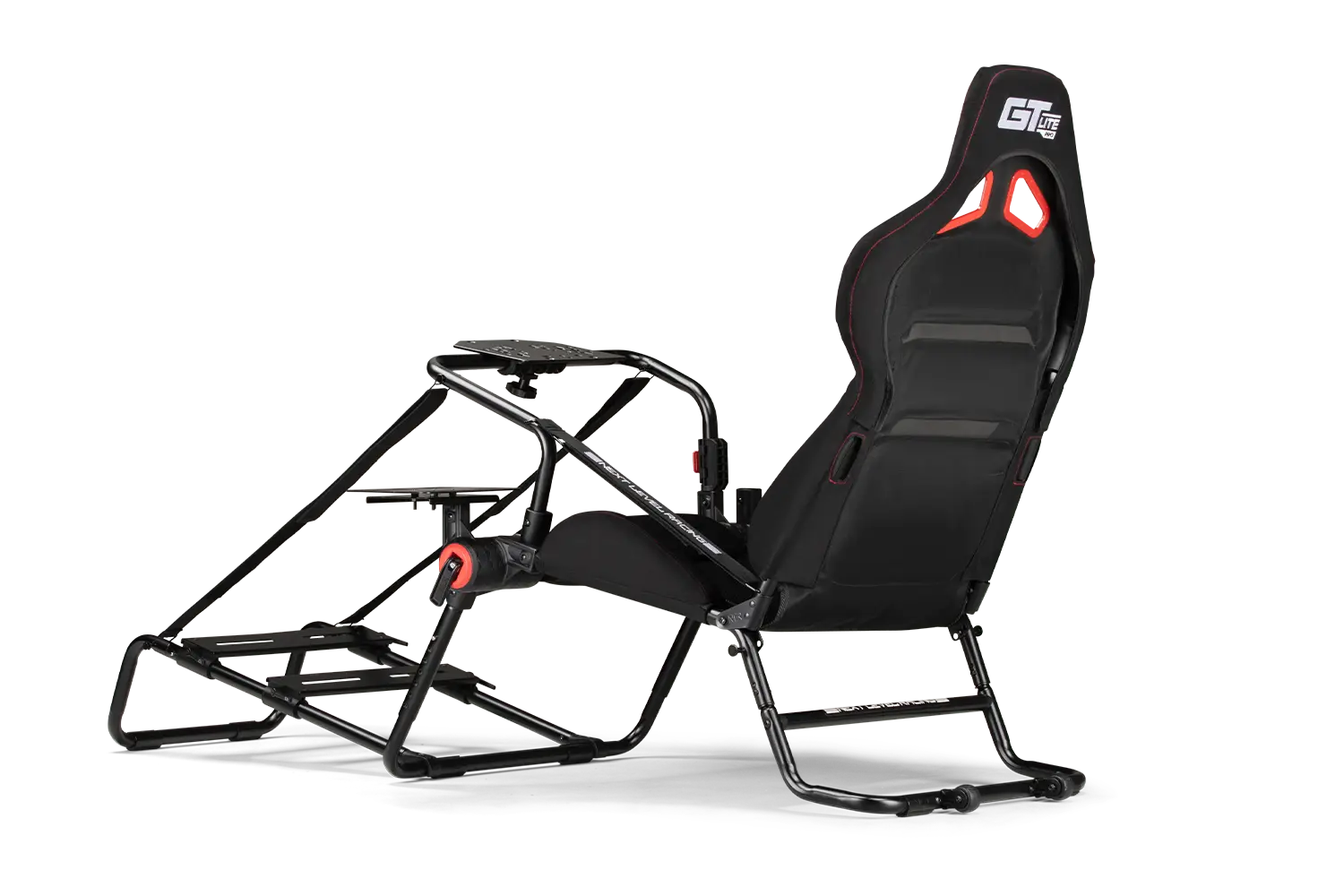

The NLR GTLite Pro is the comfort gamble

The Next Level Racing GTLite Pro is another valid answer if you want a complete foldable cockpit and a more conventional GT seating position. Its pedal deck gets good notes in reviews: sliding rails, hard mounting, and a removable support that can let the pedal set sit flat instead of tilted. That flat option is exactly why it belongs in the shortlist for your ankles.

The catch is the hub system. Foldable NLR cockpits can be fiddly to adjust, and if you share the rig or need to keep experimenting with angles, that becomes annoying. It also takes more room than a stand when opened. With CRP2s, run it in the flattest pedal-deck configuration first, then tune pedal-face angle on the Moza side. Do not start in the steepest pedal setting just because the rig allows it.

What to avoid

Avoid any cheap foldable cockpit where the pedal plate only has upward tilt positions and no solid hard-mount option. The listing might say it fits Moza, but “fits” can mean the pedals physically bolt on while still putting your ankle in a bad place. You do not need a product that merely stops the pedals sliding. You need one that lets your ankle rest naturally and keeps the brake force going into the frame.

Also avoid a formula-style folding cockpit for this specific pain unless you already know you like a reclined seat with high pedals. Your stated problem is not “I want more immersion.” Your stated problem is that the CRP2 geometry is hurting you. GT position, flatter pedals, and a locked chair are the boring answer, but boring is good here.

Buy in this order

If you can keep using your current chair, get the Next Level Racing Wheel Stand 2.0 first. It is the strongest fit for CRP2s because it fixes the loose-pedal and moving-chair problems while staying foldable. Set the pedal tray flat or as close to flat as the hardware allows, then use the CRP2 pedal-face and footrest adjustments to finish the fit.

If your chair position is inconsistent, get the Playseat Challenge X instead. It gives you a seat and a foldable frame, and it is easier to store than a heavy stand-plus-chair arrangement. Accept the flex tradeoff.

If you want a complete folding GT cockpit and care more about the pedal deck than the fastest fold, the Next Level Racing GTLite Pro is the better NLR cockpit pick. Its ability to run the pedals flat is the reason it makes sense for your ankles.

The GT Omega Apex is the fallback if you want a very stiff folding stand and can accept less certainty about solving the negative-angle requirement. It is well liked for rigidity and pedal adjustment, but it ranks behind the NLR Wheel Stand 2.0 because the chair cradle on the NLR directly helps load-cell braking with a normal chair.
