Dyson V11 Charger Won’t Fit? Check This Part

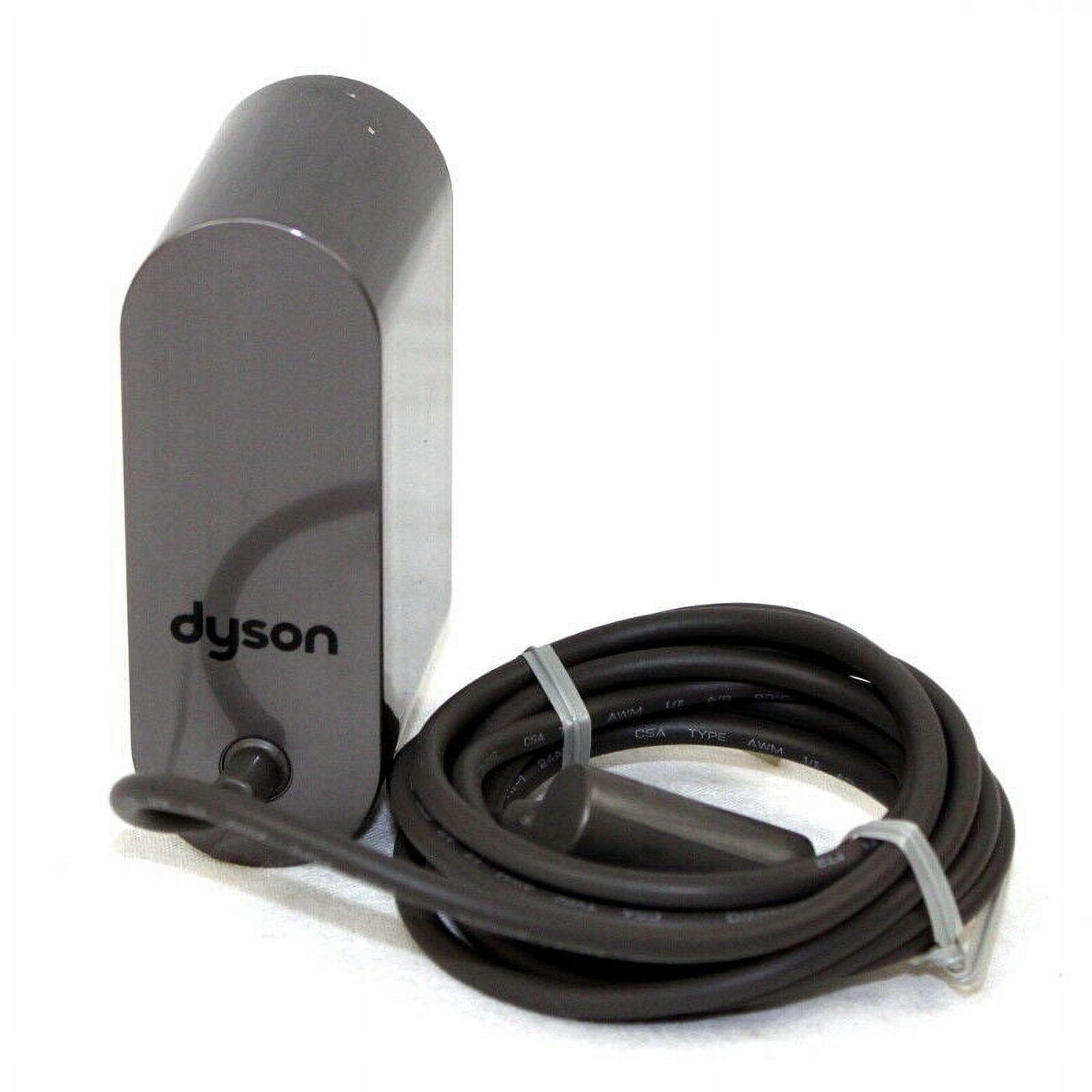

Use Dyson Charger part 969350-02 for a US-market V11; Dyson lists it for both standard and click-in V11 batteries, so you do not need a charger with a hexagonal plug. If the battery locks into the vacuum but the supplied round plug will not seat, treat the charger as the mispacked part; if the battery cannot attach securely to the vacuum body, treat the battery as the wrong part.

Skip to the picks

With a newly delivered refurbished machine, ask the seller to supply the correct charger or exchange the package before buying anything. Do not force the supplied plug, trim its plastic, or use an adapter: a near-fitting plug does not establish the correct voltage, polarity or current.

The hexagonal opening is a misleading clue

The V11 battery’s molded charging recess can look hexagonal while the correct charger plug is round. Owners discussing this exact refurbished-machine mismatch consistently identify the outer hexagon as part of the battery housing—not the shape of a missing “hexagonal charger.” In the reported cases, the supplied round plug was from the wrong Dyson charger family and a V10/V11/V12/V15-compatible charger resolved the mismatch. That is useful owner evidence, although it is not a substitute for checking the identifiers on the actual parts. The original owner discussion shows the two shapes and the V7/V8 diagnosis.

Dyson’s own compatibility table is more decisive: US replacement Charger 969350-02 is listed for original V11 models, V11 Outsize machines and V11 models with click-in batteries. In other words, click-in versus screw-in affects how the battery attaches to the handle, but it does not require two different US V11 charger models. Dyson’s 969350-02 compatibility list names all three V11 groups.

The suffix can change with the country-specific mains plug, so 969350-02 is not a universal part number outside the US. Use the vacuum’s serial number on the local Dyson support site rather than importing a charger intended for another electrical market.

Determine whether the battery or charger is wrong

Follow the mechanical chain rather than comparing the port outlines:

1. Unplug the charger. Inspect its round tip and the battery’s center socket for a bent pin, packing material or obvious damage. Do not probe the contacts with metal.
2. Check the battery against the vacuum body. A click-in battery should slide into place and lock with its release mechanism. A screw-in battery should sit flush in the handle and align with its retaining screws. A battery that cannot be secured to the machine is the wrong battery, regardless of its charging port.
3. Find the red battery-release button. Dyson says a large red release button where the handle meets the battery identifies the click-in version. No such button means the V11 takes the standard screw-in battery. Dyson’s battery guide documents this identification test.
4. Read the charger label and supplied paperwork. Look for the model or part identifier, not merely “Dyson” and a round plug. The current US replacement assembly is 969350-02. Older V11 manuals also identify Dyson charger 217160, so those two numbers can appear in different forms of Dyson documentation; verify the number through the serial-specific support page rather than assuming they must match character for character. The V11 operating manual specifies charger 217160.
5. Reject a V7/V8 charger. Dyson documents the 967813 charger family for V7 and V8 machines, not the V11. Dyson’s 967813-10 regional listing names its V7/V8 compatibility.
6. Photograph all three labels. Send the seller clear images of the vacuum serial label, battery label and charger label. Ask for the charger verified against the serial number, not simply “another round Dyson charger.”

That sequence gives a clean answer. A battery that correctly attaches to the V11 while the charger cannot enter its charging socket points to the wrong charger or a damaged port. A battery that does not attach to the V11 body points to the wrong battery. If both parts have the correct identifiers but still cannot connect, the package has physical damage or a mislabeled component and should be returned rather than repaired at home.

Click-in and screw-in batteries are not interchangeable

Dyson sells two V11 battery constructions. The genuine click-in replacement is identified as part 970938-01 and has the prominent red release button. Dyson lists screw-in V11 batteries separately, including the 970145 family for original V11 configurations. Do not choose between them by the outline around the charging socket.

Replacing a battery solely because its recess looks hexagonal is the expensive diagnostic mistake here. Battery replacement becomes reasonable only when the installed battery is the correct physical type and a verified V11 charger connects normally but the battery still will not accept or hold a charge. Dyson itself recommends troubleshooting before purchasing either battery style.

What not to buy

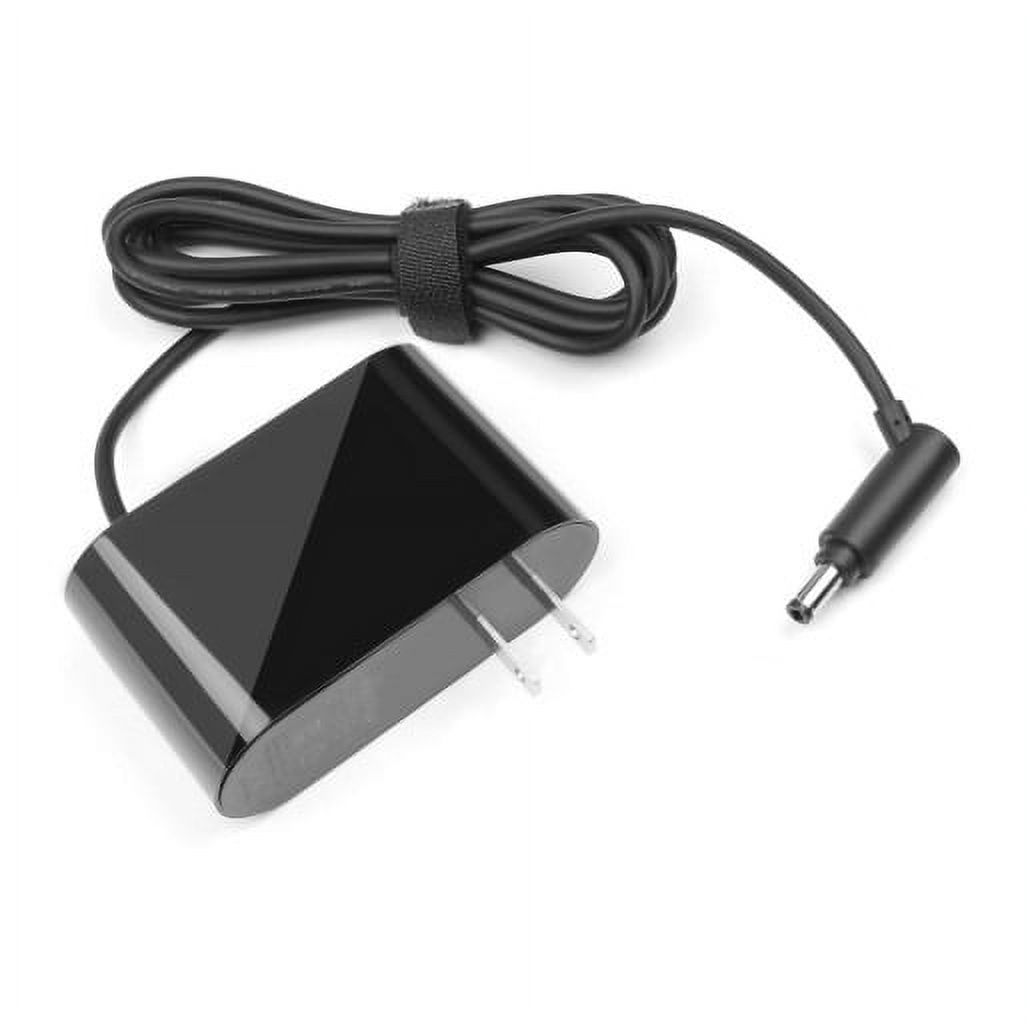

Skip Dyson Charger part 967813-02 for a V11: Dyson documents the 967813 family for V7/V8 machines, making it wrong for anyone repairing a V11 even though its cable ends in a similar-looking round plug. It is an appropriate charger for the specified V7/V8 models, but it is not a narrower or cheaper V11 option.

Also avoid listings that promise compatibility with numerous Dyson generations without naming 969350, 217160 or another identifier verified for the exact serial number. Connector appearance alone is insufficient, and no independent laboratory appears to have published dimensional measurements for these two charger tips. The fit diagnosis therefore rests on Dyson’s compatibility documentation and corroborating owner reports, not an independently measured plug diameter.

Once the correct charger fits

Connect the charger directly to the vacuum before involving the Wall Dok. This removes dock alignment from the test. Use a known-working outlet and allow a depleted battery a full charging cycle rather than declaring it defective after a few minutes.

RTINGS independently measured a four-hour recharge time for its V11 Animal test unit, along with runtimes from eight minutes in its most demanding configuration to 76 minutes in Eco use. Those figures do not diagnose this connector fault, but they show why a correct V11 can need substantial charging time after delivery. RTINGS publishes the measured battery and recharge results.

If the verified charger seats normally but the machine shows no charging response, stop exchanging random parts. A damaged battery socket, failed charger or failed battery cannot be separated reliably by connector shape. The seller should test the components or accept a return; an in-warranty machine should go through Dyson support with its serial number.

Is a refurbished V11 still worth buying?

This mismatch is a fulfillment fault, not evidence that the V11 design requires incompatible chargers. A refurbished V11 remains a reasonable purchase when the seller supplies the serial-matched charger and provides a usable return path; independent testing found strong pet-hair pickup and long Eco-mode runtime, although the machine is heavy in the hand and slow to recharge.

The Dyson 969350-02 charger is the part to buy when the battery already fits a US V11 and the seller will not correct the missing accessory. For a just-delivered refurbishment, however, make the seller correct its packing error first. Return the machine if the seller cannot confirm the serial-matched parts—buying both a speculative charger and a speculative battery turns a straightforward mismatch into an unsafe and needlessly costly parts hunt.
